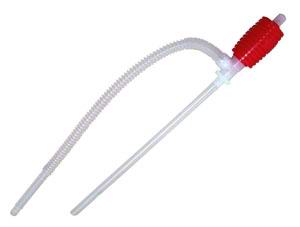

Model

DP-14

Applications & Features

* Suction type : manual squeezing type

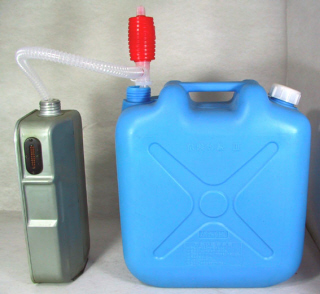

* Kerosene, Light oils, diesel oils, chemical insecticides, toluene,

light solvents, gasoline, water(not safe for drinking), alcoholic drinks, Etc.

* Non corrosive, non toxic plastic material constructed

Specifications

* Total Length : 530 mm

* Suction tube Length : 390 mm

* Suction tube Inner Dia. : 14 mm

* Discharge Tube Length : 540 mm

* Discharge Tube Inner Dia. : 12 mm

* Head Out Dia. : 51 mm

* Delivery Volume : About 7 liter / Min.

* Main Material : P.E

Net Weight/pc

* About 61.5g

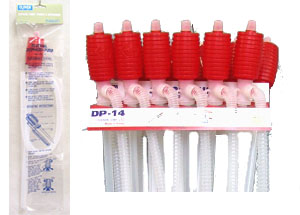

Packing

DP-14

* 1 dozen in a card holder / 120 pcs.: master C/T box

DP-14B

* Bulk condition / 120 pcs.: master C/T box

Carton Dimension

( D X W X H )

Master C/T : 650 mm X 320 mm X 580 mm

G.W/Carton

About 10 kg

Stuffing Q'ty

* 20ft : 236 C/T 28,320 pcs.

* 40ft : 503 C/T 60,360 pcs.

* 40ft : 537 C/T 64,440 pcs.(*Jumbo)

Other Informations

* JIS approved complied with JIS S 2037 rule
